Model 200 & 200-20

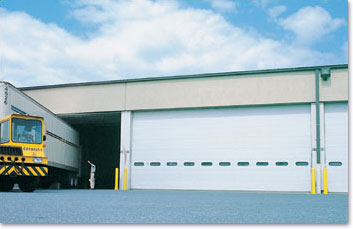

Architects, engineers, contractors and building owners who place energy conservation foremost in their planning will readily recognize the significance of Model 200 & 200(-20), an insulated overhead sectional door for commercial and industrial applications.

Thermospan® 200 and 200-20 Features

Energy efficiency
Thermospan® 200 & 200-20 is a total insulating system, including thermal barrier and joint seals as well as vinyl top seal and bottom astragal-all attached to the door sections. All seals are factory-installed to save installation time and avoid the problems sometimes found on conventional doors due to inadvertent exclusion of seals during installation.


Maximum efficiency and operation
Chemical bonding of CFC free polyurethane to steel skins creates a unitized body with superior strength, insulation and dent-resistant characteristics.

High quality materials
High quality materials are provided with the doors such as hardware plates at all fastener points for added durability and life, hot dipped galvanized steel end caps protect the end of the door and help provide a tight seal against the jambs and graduated hinges and inclined adjustable track assure a snug seal against air infiltration.

Virtually maintenance free
Thermospan® 200 and 200-20 are virtually maintenance free. They are impact-resistant and feature a pre-painted exterior surface. The interior and exterior skins are hot-dipped, galvanized, structural quality steel is factory finished with baked-on corrosion-resistant primer and white polyester finish coat (brown exterior is available on Thermospan® 200 model).


Factory Glazed Windows 24" X 6"
The Thermospan® comes with factory installed 1/2" sealed insulated glass windows mounted in a molded high-impact frame.

Specifications and Drawings
Wayne-Dalton offers specifications and full technical support for our commercial products. For further information please visit our product solution center.

Extended limited warranty
Sections are warranted for TEN (10) YEARS against cracking, splitting, or deterioration due to rust-through, and SEVEN (7) YEARS against separation/degradation of foam insulation. TEN (10) YEARS on insulation value.
